Bluetooth & Proprietary 2.4 Ghz RF Protocol
Incorporate various MCUs, wireless modules, sensors, and output components to achieve functions such as audio streaming, remote control, control command, and data transmission.
BLISS ODM / JDM PCBA (Transmitter)

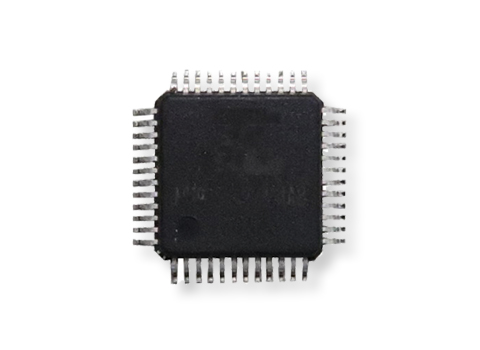

PCBA Transmitter

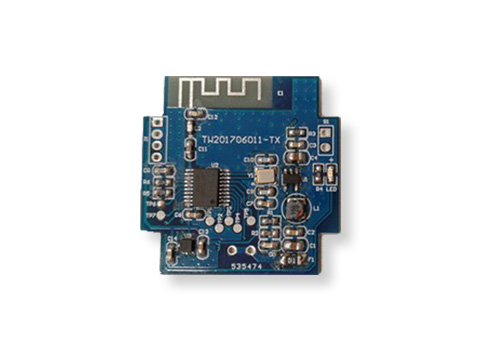

2.4 Ghz module
* BLISS custom programmed and designed PCBA board (Wireless control up to 100 Meter using 2.4 Ghz / 10 Meter using Bluetooth)
Description:
Special programmed MCU providing functions such as:
- Sensor data transmission
- transmissionControl command
- Audio / video streaming
Available Input Devices:
- Camera
- Switches
- Sensors
- Microphones
BLISS ODM / JDM PCBA (Receiving Device)

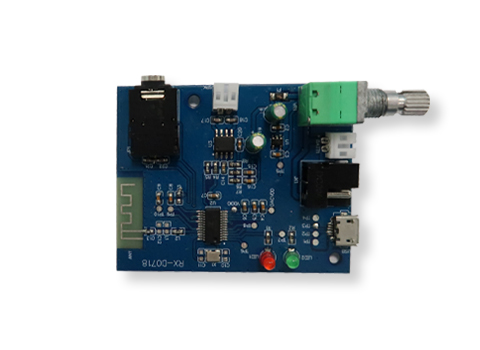

PCBA Receiving Device
2.4 Ghz module
* BLISS custom programmed and designed PCBA board (Wireless control up to 100 Meter using 2.4 Ghz / 10 Meter using Bluetooth)
Description:
- Compatible with smart devices
- Based on Bluetooth or Proprietary 2.4 Ghz protocol
Available Output Devices:
- Motors / Gearbox
- LEDs
- Speaker
- Other devices

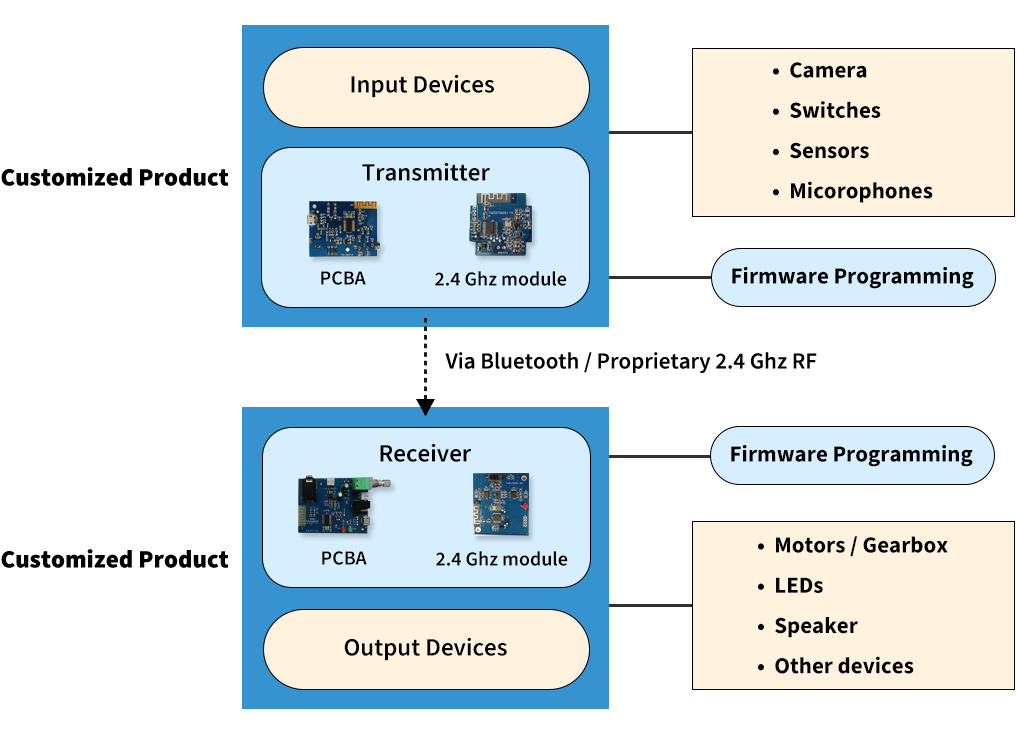

Customization Flowchart:
Proprietary 2.4 Ghz Solution

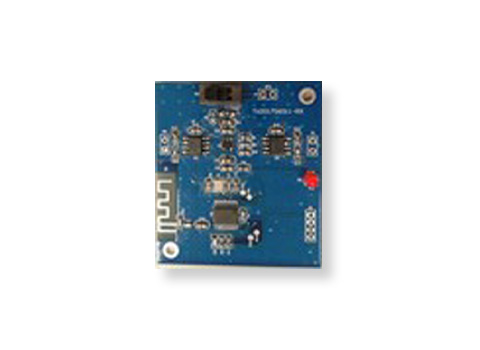

2.4 Ghz RX with Motor driver PCBA
2.4 Ghz TX with G-sensor PCBA
Bluetooth Solution
Bluetooth chip BT2.1 + EDR
.jpg)

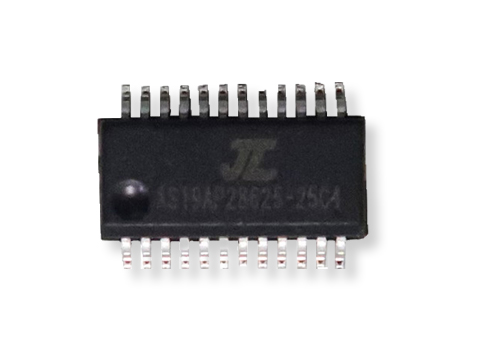

Bluetooth chip BT5.0 + BLE Dual Mode (QSOP24)
.jpg)

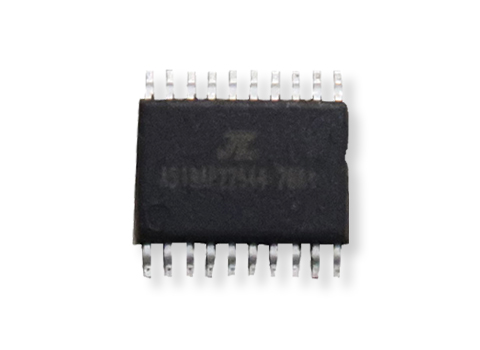

Bluetooth chip BT5.0 + BLE Dual Mode (TSSOP20)

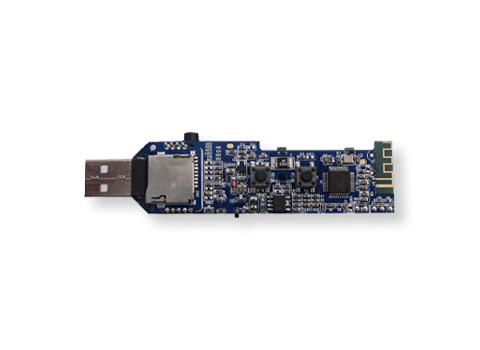

Bluetooth Mic and Speaker

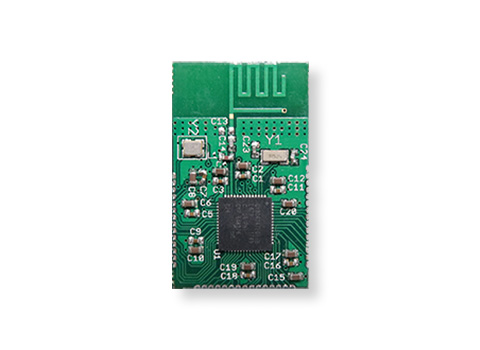

Cypress BT module BLE 4.1

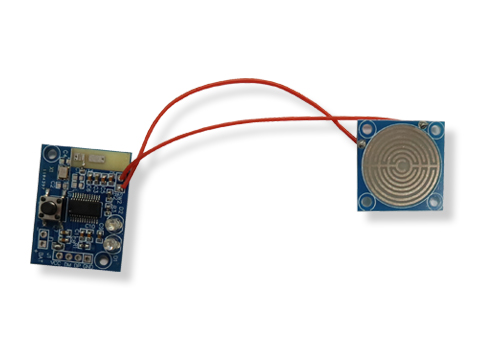

Bluetooth TX for water detection
.jpg)

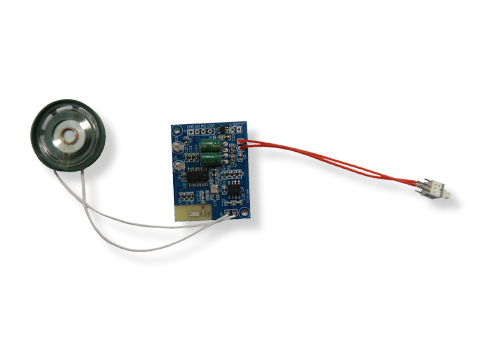

Bluetooth RX for playing sound
(Triggered by TX)
Bluetooth RX Speaker for receiving audio streams

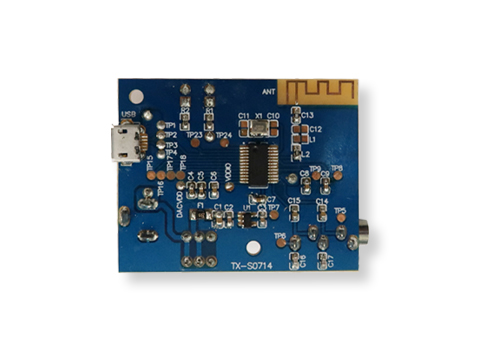

Bluetooth TX for transmitting audio streams
ODM Products for reference

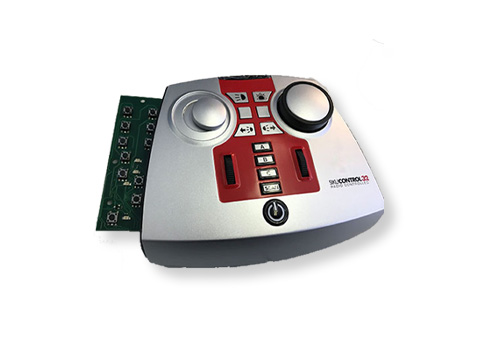

Bluetooth TX Remote Controller

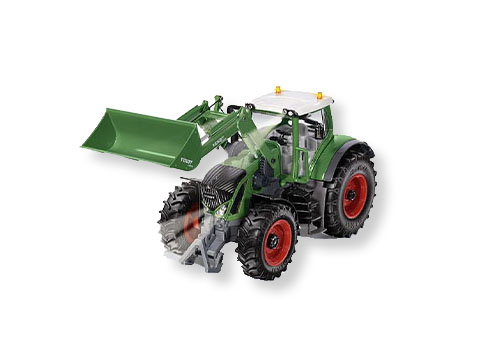

RX on Front Loader toy

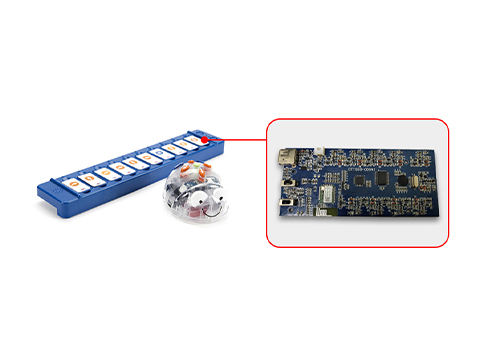

Bluetooth Controller Bar for the Mouse Bot
(Bluetooth TX with MFID card reader)

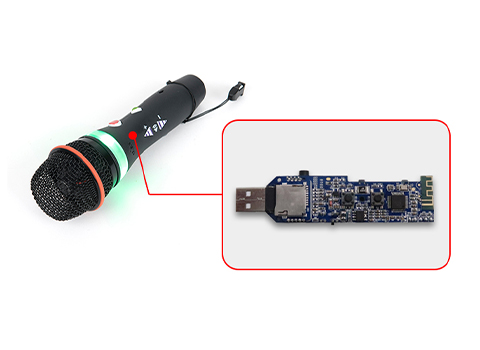

Bluetooth Microphone

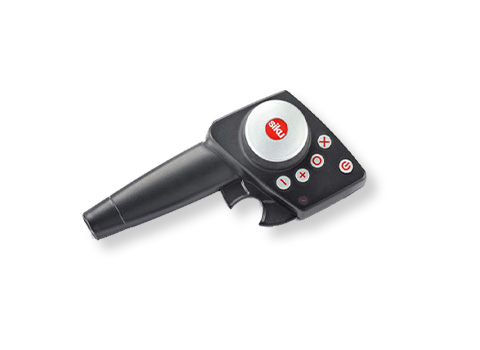

2.4 Ghz Remote Controller
