Custom Designed Moving Mechanisms

BLISS In-House engineers provide custom-designed gearbox with matching motors to fulfill all kinds of moving mechanism needs.

* All products are 3D CAD designed

Applications:

  • Mechanical skeleton for Plush / Robotic toys / Machinery toys etc.
  • Arm / head / limbs / tail / Wings / body type of movements

Prototyping Services:

  • Provide functional prototypes created for engineer testing
  • 3D SLA Printing
  • Small batch prototyping using silicone molding

Available Options:

  • Multi-motor and gearbox designs (up to 7 motors / 14 motions)
  • Integration with other electronic functions available (Ex: lights, sounds, wireless controls etc.)
  • Programmable movements

* More motors = more movement possibilities

Prototype: Remote-Controlled Motorized Robotic Arm

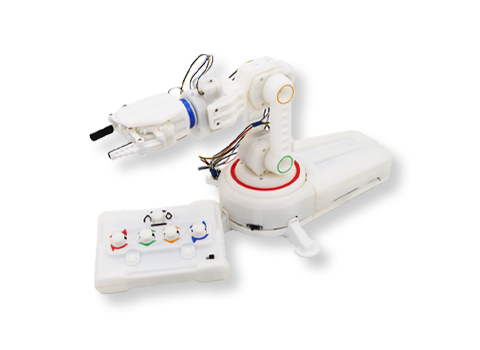

Robotic Arm with 5 motors

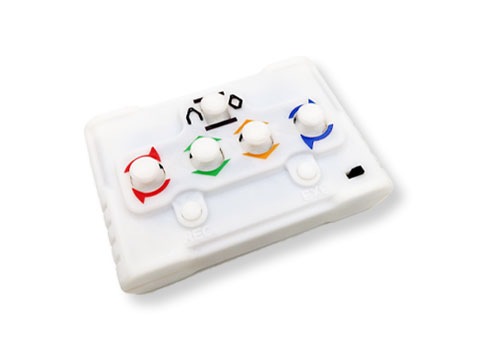

Wireless Remote Control

Description:

  • An unique robotic arm driven by 5 independent motors (a motor for every joint)
  • The 2.4 Ghz Radio Freq Remote Control can:

    • ○ Control each joint independently

    ○ Record and Playback arm movement destination

  • A demonstration of different mechanical movements
  • Excellent for toy robots and machinery

Demo Video:

Prototype : DJ Robot (Bluetooth)

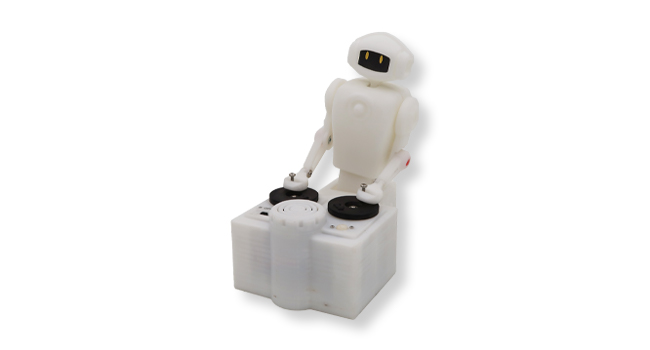

DJ Robot

Description:

  • Moving components: head / torso / turntable rotation (connected to arms)
  • Programmable movement (can also be programmed based on sound volume)
  • Bluetooth speaker functionality
  • Built-in music

Demo Video:

Prototype : Penguin / Dog

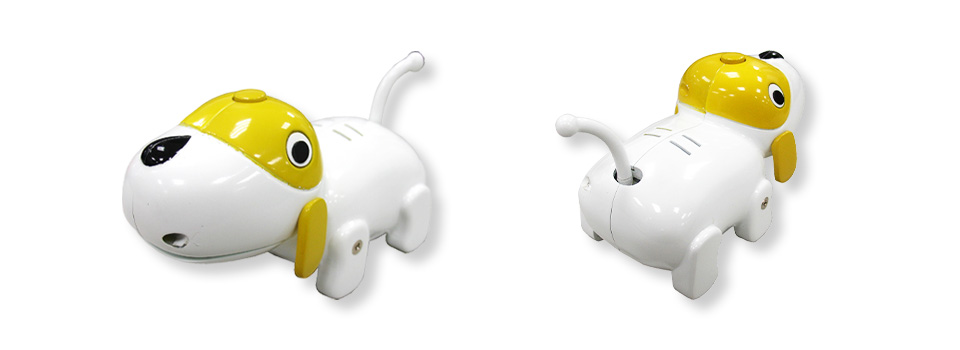

Dog Sample

Dimension: 10 x 5 x 5 (cm)

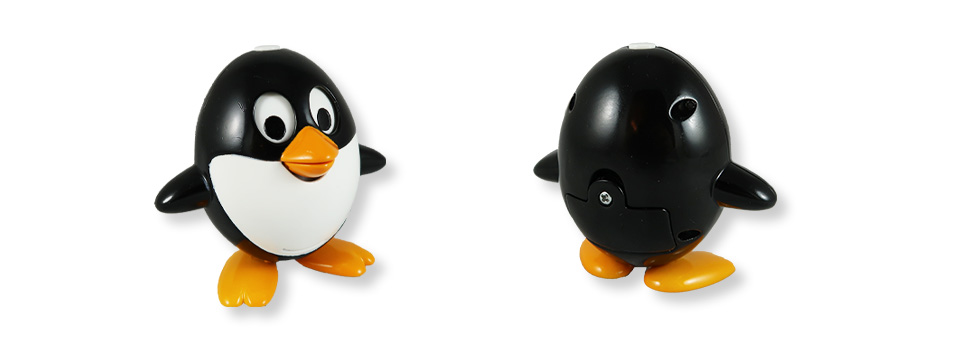

Penguin Sample

Dimension: 6 x 5 x 7 (cm)

Description:

  • Moving components: Mouth / Eyes / Tail
  • Motion modules utilizing magnet to drive small movements
  • No motors inside
  • Low Cost

Demo Video:

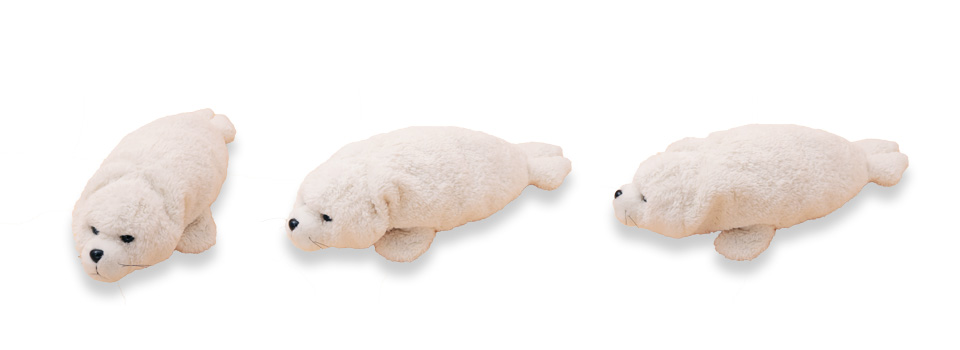

Prototype: Baby Seal

Baby Seal sample

Description:

  • Moving components: head / eyes / torso / tail
  • Touch sensor triggering 4 motor movements

Demo Video:

Prototype: Remote-Controlled Turtle

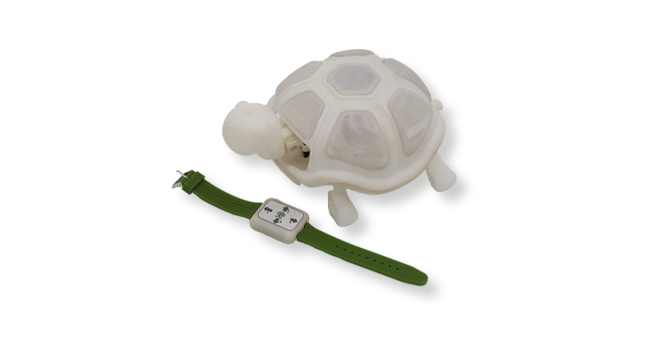

Turtle using G-Sensor Watch remote control

Description:

  • Moving components: head / legs
  • Watch remote with G-sensor controlling turtle moving direction

Demo Video:

Prototype: Sound-Sensing Rotating Base

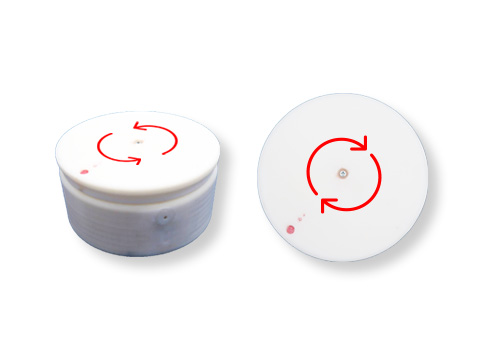

Sound-Sensing Rotating Base

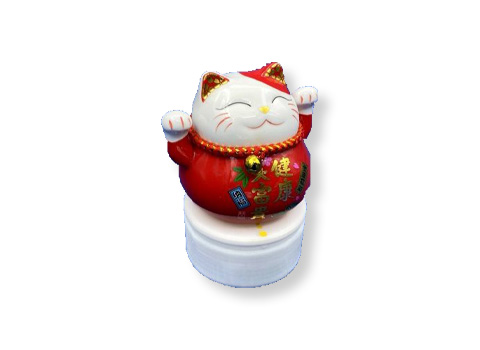

Example

Description:

  • Base detects sound and rotates to sound source
  • Moving components: sound-triggering motorized base
  • Voice Recording and playback function

Demo Videos:
