Sensors and Interactive Solutions

BLISS provides various sensors for detection and triggering actions.

I. Sensors and Switches

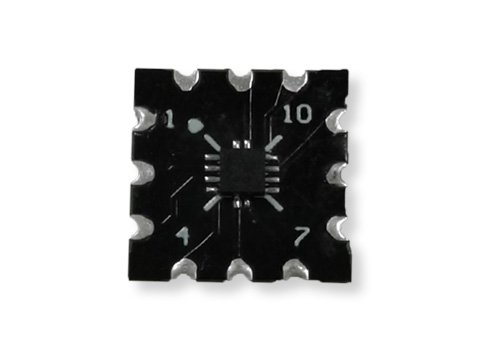

G Sensor

Detects tilting degree, direction and respond accordingly

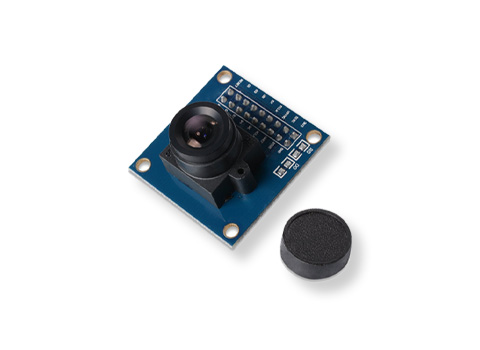

CMOS Camera

Sends image to custom programmed IC for analysis and response

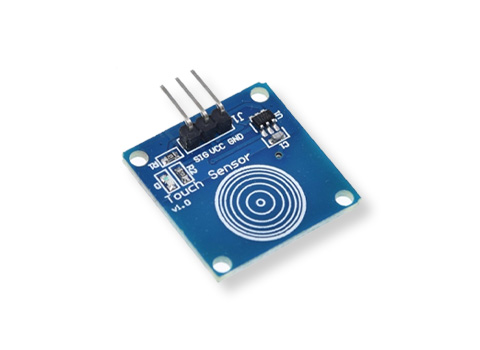

Multi-Direction Touch Sensor and Proximity Sensor

Detects contact under various types of surface (ex: rubber, plastic, paper or plush)

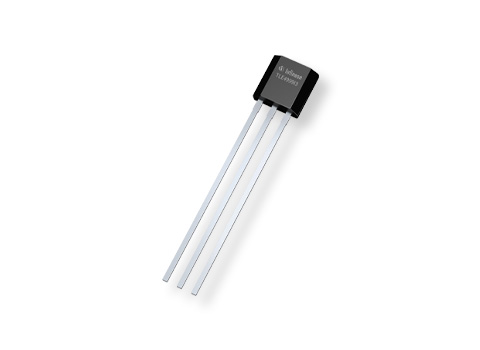

Hall Sensor

Detects magnetic field

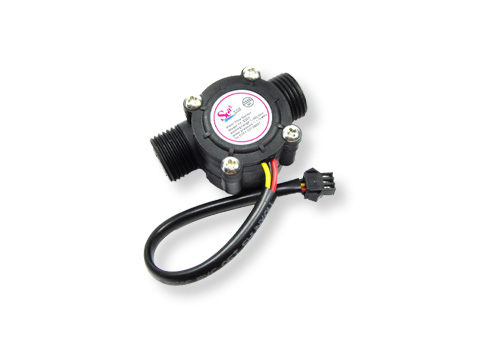

Water Flow Sensor

Detects the amount / rate of water flow

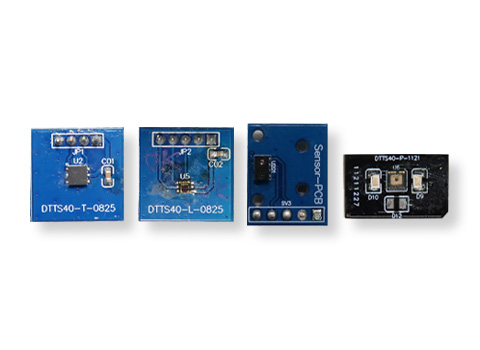

Temperature and Humidity Sensor

Detects temperature and humidity

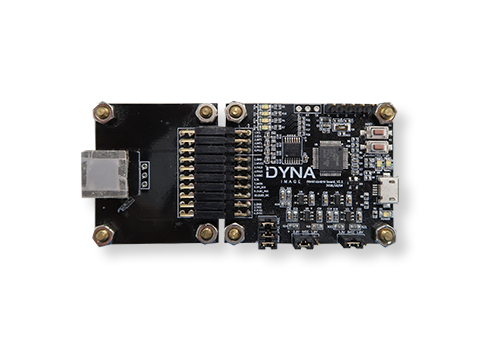

Color Sensor

  • Integrates (RGB) color sensor and ambient light sensor
  • I2C interface controlled by external MCU
  • Up to 16-bit digital output (0-65535)
  • Can be calibrated by firmware programming

II. IR Remote Control Solution

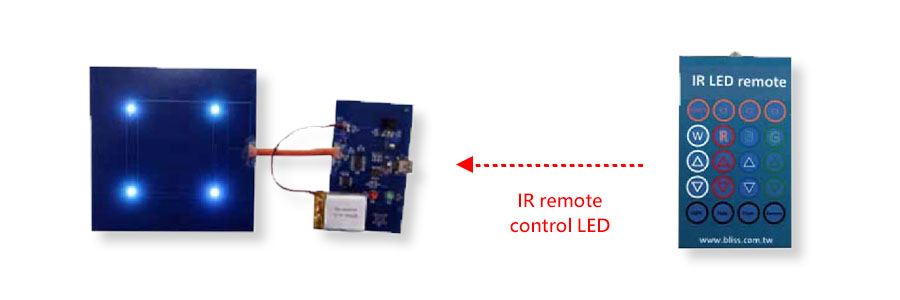

Example: IR Remote control LED

Controls LED color, brightness, flash pattern (with color memory function)

Description:

  • Distance 5~10m
  • Work in line-of-sight
  • Not ideal for outdoor usage under daylight

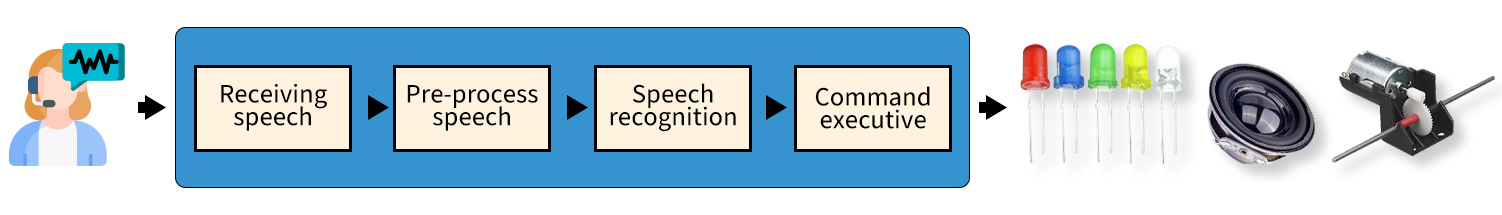

III. Speech Recognition Solution

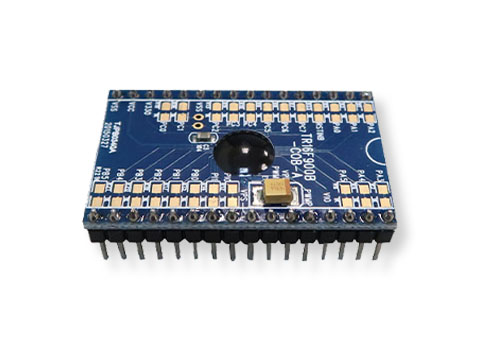

ASR Module

Description:

  • New Technology similar to Speech-to-Text on computers
  • No longer requires minimum of 120+ command samples
  • Great saving on development cost and time
  • Supports English, Spanish, German, French, Italian, Portuguese, Russian, Japanese, korean, Chinese and more

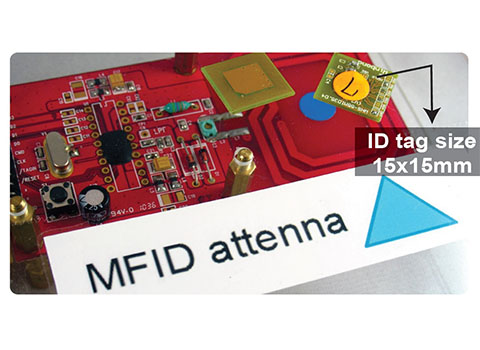

IV. MFID Solution

MFID

Description:

MFID (Magnetic Field Identification) tag functions as a trigger to the main module (integrated with flash memory and antenna). Once triggered various actions can be executed such as:

  • Play sound
  • Record a message
  • Trigger LED flashing
  • Start motor running

* Sensing distance is about 2~3 cm

2 types of Controller modules:

Type A: Single Channel

  • Identify one tag at a time
  • Each main controller can ID up to 243 IDs

Type B: Multi-Channel

  • Identify multiple tags at once
  • Up to 3 controllers can be combined to handle 16 channels of sound (1 channel required to connect to the next controller)
  • Each main controller can handle 6 channels

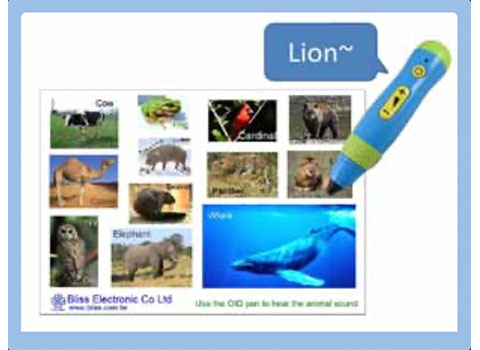

V. Optical ID Solution

Optical ID

Description:

Optical ID pen with camera that reads barcodes and plays custom messages associated with that particular barcode. Barcodes are tiny and invisible to human eyes and can be used alongside printed materials.

Low Cost Version

  • Supports up to 65,535 IDs
  • Optional voice recording function
  • Supports up to 32GB memory card for additional contents and voice recording
  • USB for programming and content updates

Upgraded Version

  • Supports up to 268,435,456 IDs
  • Low operation power for sensor and decoder
  • Optional voice recording function
  • Supports up to 32GB memory card for additional contents and voice recording
  • USB for programming and content updates
